R134a | R513a refrigerant | ||
---|---|---|
Compressor | Oil | Mounting |
UX200 | PAG56 (180 ml) | Direct mount |
R404a | R452a refrigerant | ||
---|---|---|
Compressor | Oil | Mounting |
UXF200 | POE32 (180 ml) | Direct mount |
R1234yf refrigerant | ||
---|---|---|
Compressor | Oil | Mounting |
UXY200 | PAG46 HD (180ml) | Direct mount |

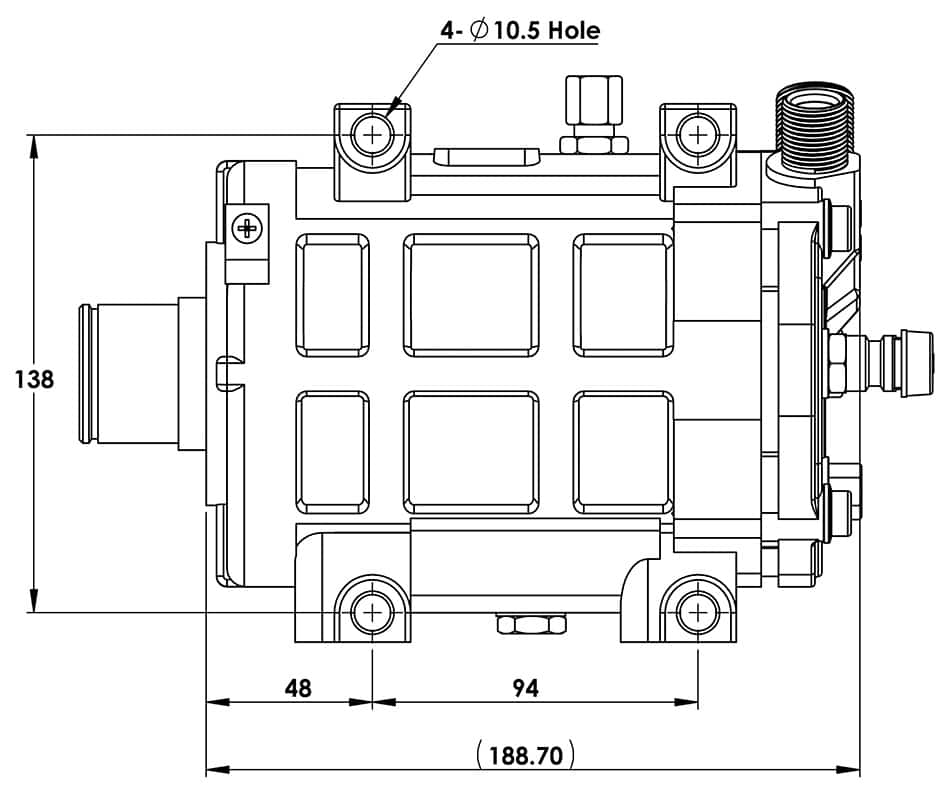

The UX and UXF models are direct mount (bolt-through) and have side mounting points 94 mm apart.

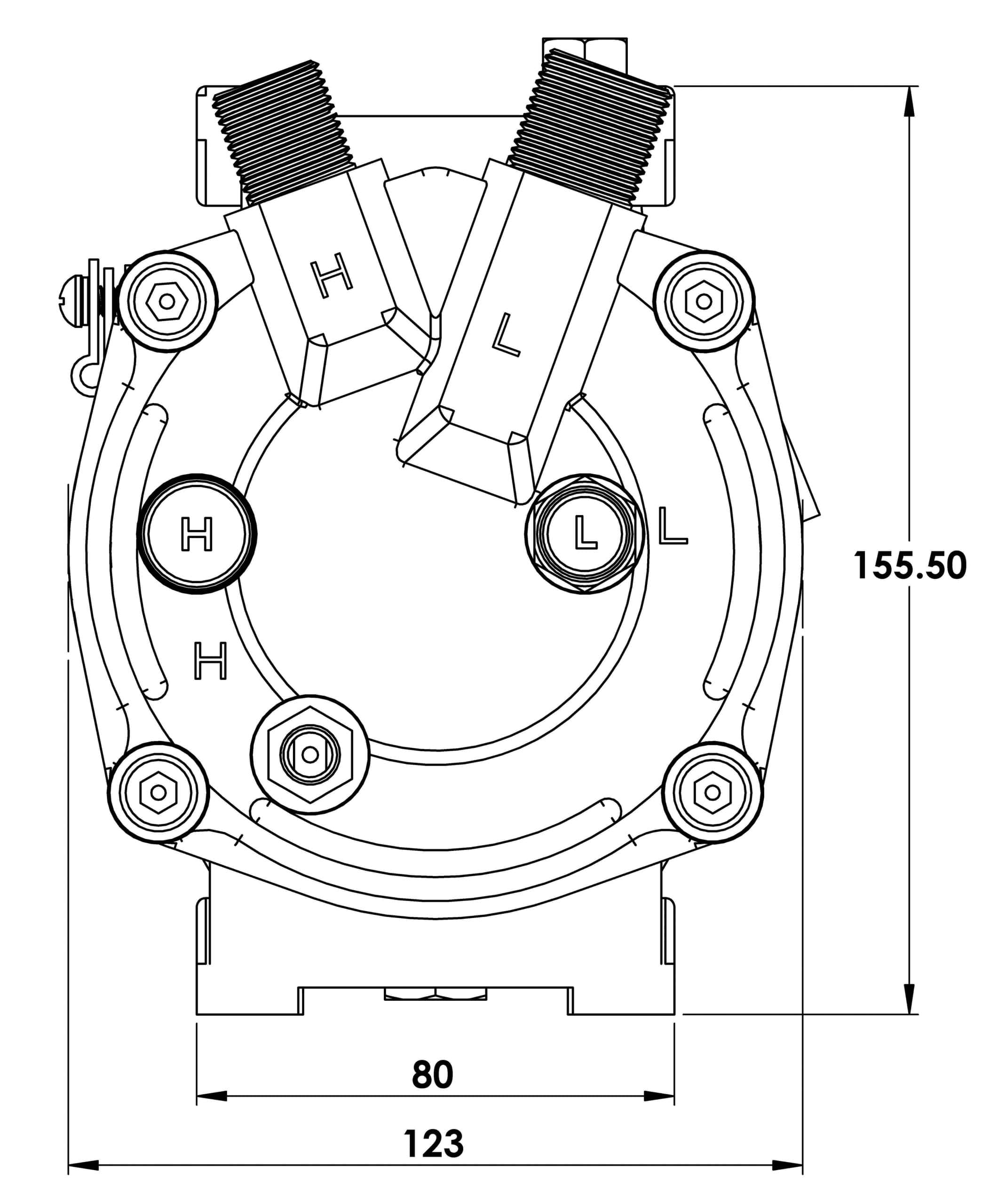

Low- and high-side service valves are fitted to the rear cap, including a high-pressure relief valve.
An oil return fitting – 7/16-20 UNF male flare (Part No. 42203-000160) – is fitted on top of the compressor. It has a unique flow design suited to the Unicla oil separator (Part No. OS000010) and is interchangeable with the low-side service valve.
Consistent M12 x 1.0 mm access port size. Easy interchange of blanking plugs, service valves, oil return and pressure switch fittings.
Type | 125 | 135 | 145 | 152 | 12V | 24V |
---|---|---|---|---|---|---|
AA-Groove | ||||||
B-Groove | ||||||
BB-Groove | ||||||
6-Groove | ||||||
8-Groove | ||||||
10-Groove |
Pulley measurements are in millimetres
