UWX | UWXF 440

Features

Unicla 14-cylinder swashplate
Suitable for refrigeration and air-conditioning applications with a system capacity requirement of 16-24 kW
Displacement: 508 cc/rev
Maximum continuous: 4500 rpm
Smooth and quiet operation
High in capacity (508 cc), low in weight (25.4 kg) with compact dimensions of 324 mm x 188 mm x 303 mm
Clockwise and counterclockwise rotation with no change in volumetric efficiency
Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
Forged steel cylinder housing
Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
Unicla Multi Direct Mounting (MDM)
Refrigerants: R134a, R404a, R452a
Pre-charged with PAG or POE oil
Genuine NSK bearings throughout

R134a \| R513a refrigerant
Compressor	Oil	Mounting
UWX440	PAG56 or POE68 (900 ml)	Direct (all sides)

R404a \| R452a refrigerant
Compressor	Oil	Mounting
UWXF440	POE32 (900 ml)	Direct (all sides)

R1234yf refrigerant
Compressor	Oil	Mounting
UWXY440	PAG46 HD (180ml)	Direct (all sides)

Mounting

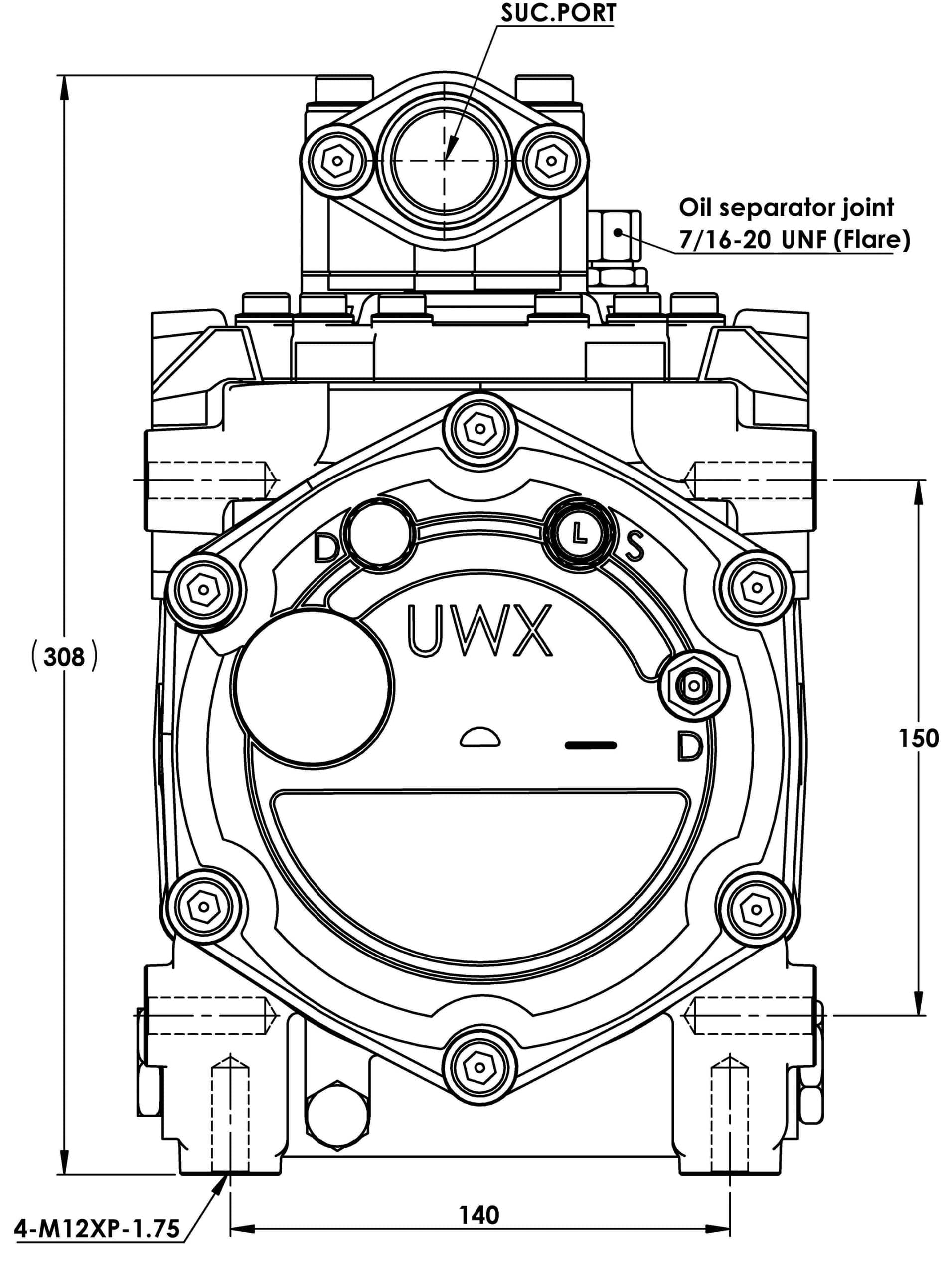

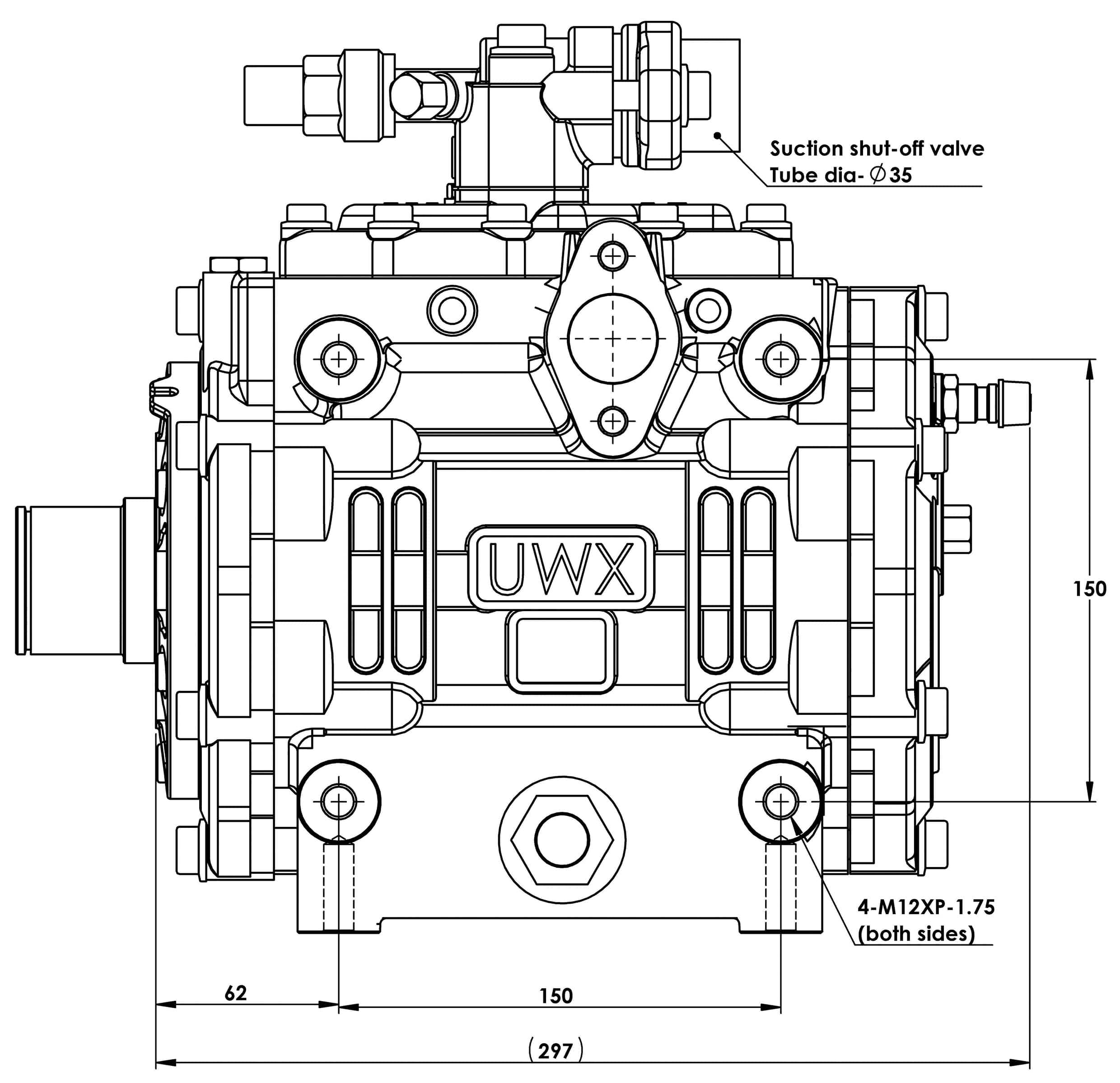

The Multi Direct Mounting system provides a total of 12 mounting points (four on the left, right and bottom sides). Each mounting point has an M12 x 1.75 mm threaded hole, providing excellent flexibility in engine mounting and bracket design.

Service valves

Low- and high-side service valves are fitted on the shut-off manifolds, and on the rear cap of the compressor.

Oil return port

An oil return fitting – 7/16-20 UNF male flare (Part No. 42203-000160) – is fitted on top of the compressor. It has a unique flow design suited to the Unicla oil separator (Part No. OS000050) and is interchangeable with the low-side service valve.

Other ports and fittings

Consistent M12 x 1.0 mm access port size. Easy interchange of blanking plugs, service valves, oil return and pressure switch fittings.

Hose ports

The suction port is located on top of the compressor and the discharge port can be taken from either the left or right side. Both ports are fitted with a shut-off manifold assembly with back seating capability via stem valves.

Clutches
