Unicla

UNX380

Features
  • Unicla 10-cylinder swashplate
  • Suitable for larger commercial applications with a system capacity requirement of 12-16 kW
  • Displacement: 380 cc/rev
  • Maximum continuous: 4500 rpm
  • Smooth and quiet operation with excellent performance through all rev ranges
  • Clockwise and counterclockwise rotation with no change in volumetric efficiency
  • Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
  • Forged steel cylinder housing
  • Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
  • Lip seal with high tolerance to heat and operational fatigue
  • Genuine NSK bearings throughout
90 Unx380
R134a | R513a refrigerant
Compressor Oil Mounting
UNX380 PAG56 or POE68 (600 ml) Denso 10P30C compatible
R1234yf refrigerant
Compressor Oil Mounting
UNXY380 PAG46 HD (600ml) Denso 10P30C compatible
Download the Brochure

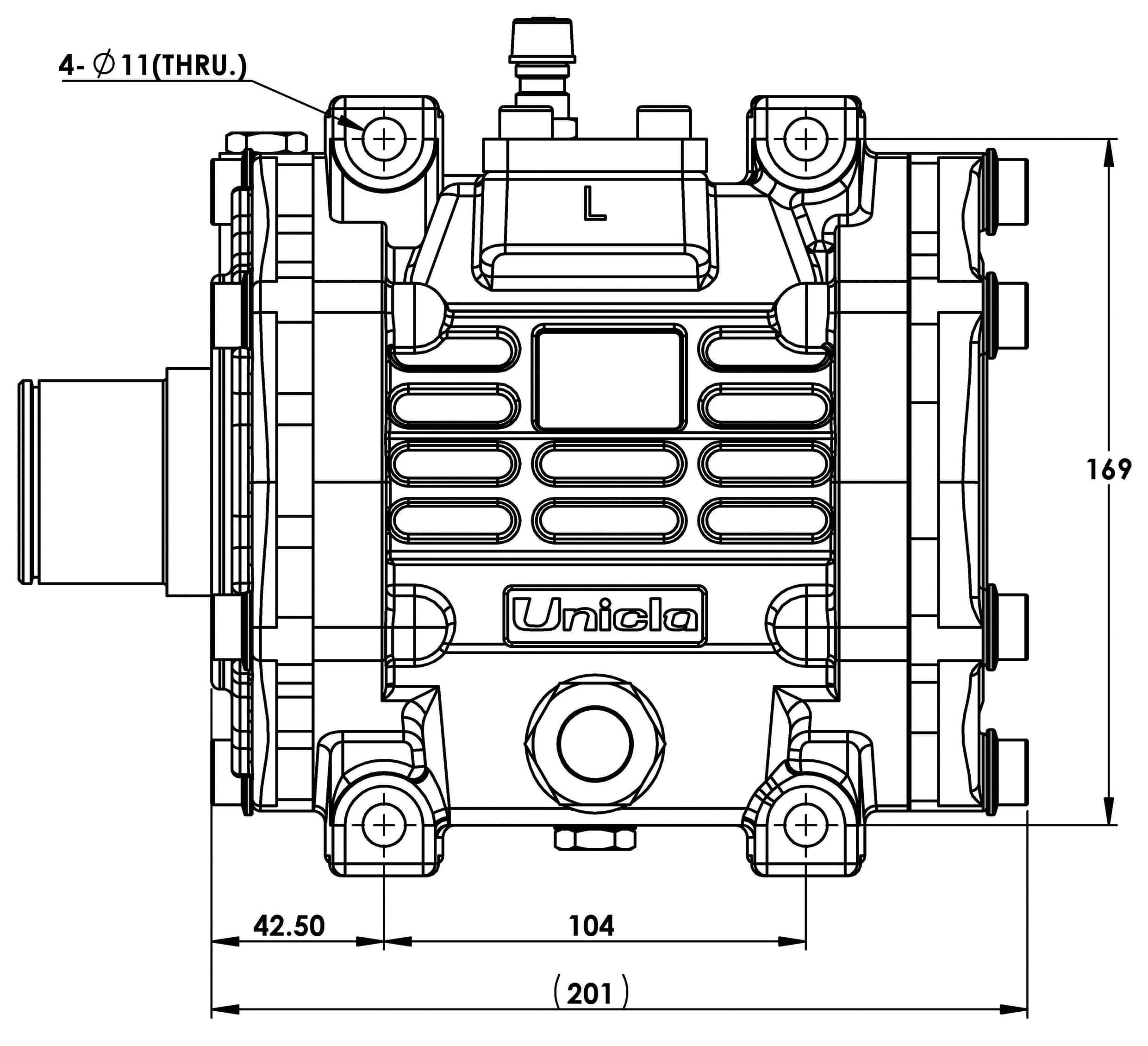

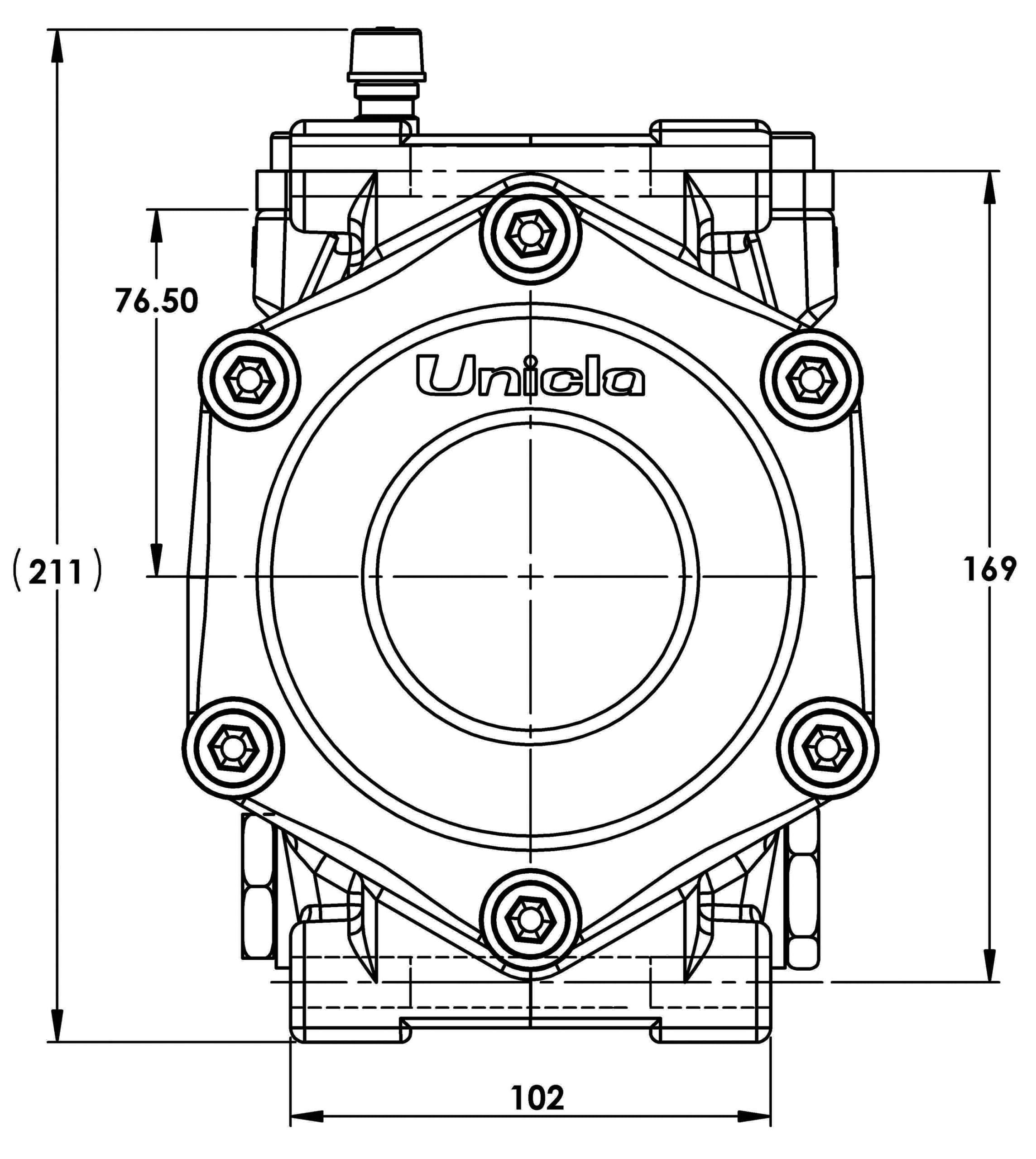

The direct mounting system (bolt-through) on the UNX provides a total of eight mounting points (four on both the left and right sides), enabling direct compatibility with Denso 10P30C compressors. Mounting points on each side of the compressor are 104 mm and 169 mm apart.

A low-side service valve is fitted to the top.

An oil return port is not fitted.

A single-piece manifold is available.

Type 158 168 178 210 12V 24V HDC
AA-Groove
B-Groove
BB-Groove
6-Groove
8-Groove
10-Groove

Pulley measurements are in millimetres

specification_1
specification_2
specification_1
